Duplex Plunger Pumps for Hydro Testing

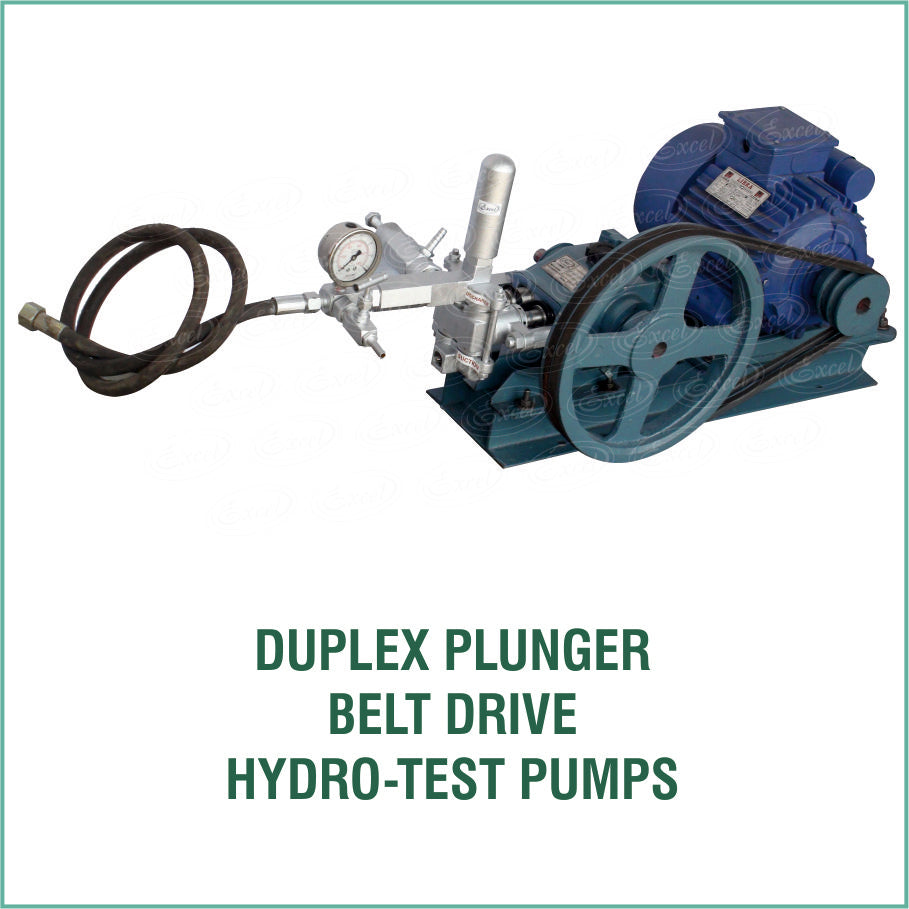

"EXCEL" Make Duplex Plunger Hydro-Test Pump mounted on a common base frame driven by  Electric Motor through Belt-Pulley mechanism

Crank Shaft Mechanism, Supported with Ball Bearings, Pump Head Made from High Strength SS Material, SS Plunger, Spring Loaded Suction and Discharge Valve provided with Glycerin Filled Pressure Gauge, SS-304 NRV, SS-304 PRV, Brass Body Pressure Release Body with SS Needle

Port Connection: 3/8" x1/2" BSP Threaded End

Scope of Supply: Pump + PRV + NRV + Base + Pulley Set + NRV + Pressure Gauge + Pressure Hose with Three Phase Electric Motor

Pressure: 55 Bar, Flow:  10 LPM, Motor: 2 HP/TEFC/3Ph/Non FLP
