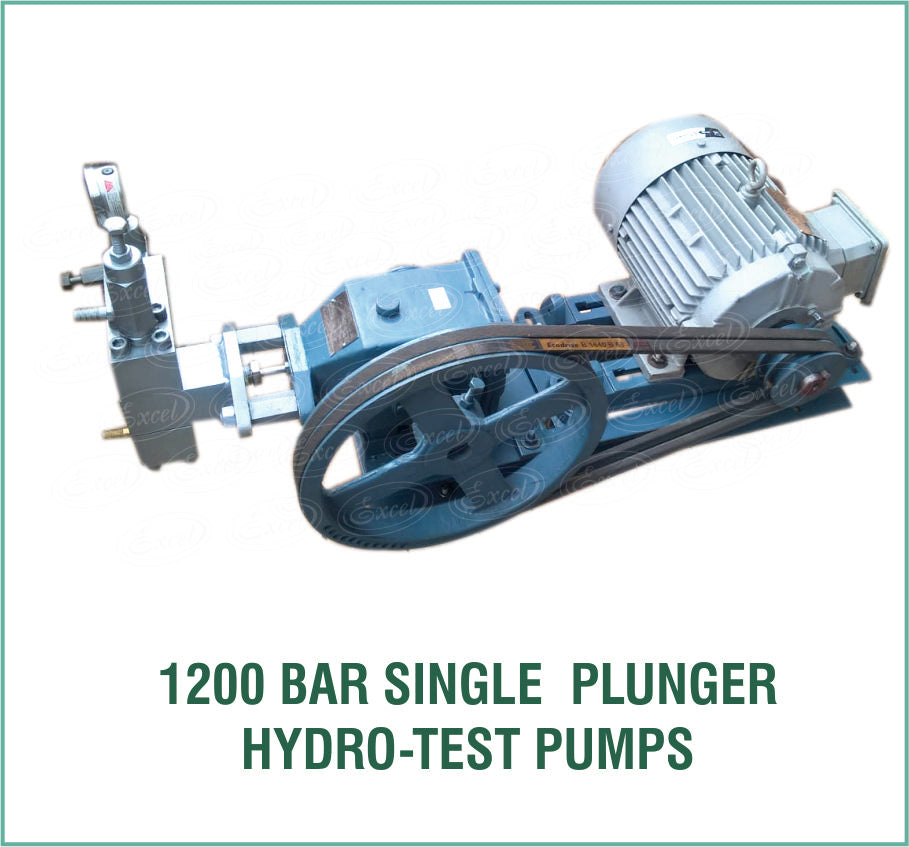

Hydro Testing Pumps - 1200 Bar

"EXCEL" Make Single Plunger Hydro-Test Pump mounted on a common base frame driven by  Electric Motor through Belt-Pulley mechanism

Crank Shaft Mechanism, Supported with Ball Bearings, Pump Head Made from High Strength MS Material, SS Plunger, Spring Loaded Suction and Discharge Valve provided with Glycerin Filled Pressure Gauge.

Standard Accessories: SS-304 NRV, SS-304 PRV, Glycerin Filled Pressure Gauge, Brass Body Pressure Release Body with SS Needle

Port Connection: 3/8" x1/2" BSP Threaded End

Scope of Supply: Pump + PRV + NRV + Base + Pulley Set + NRV + Pressure Gauge + Pressure Hose with 7.5 HP Three Phase Motor
