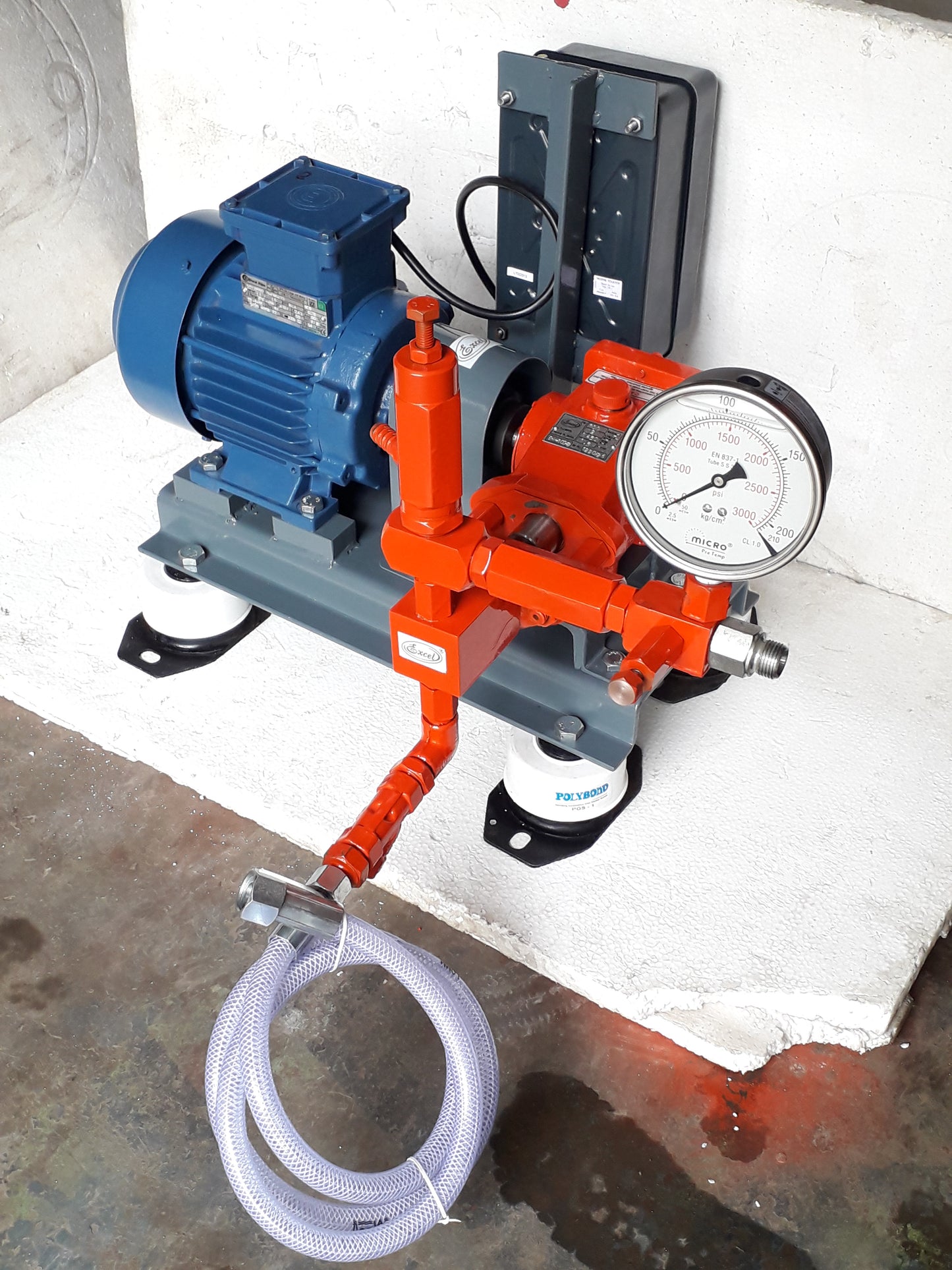

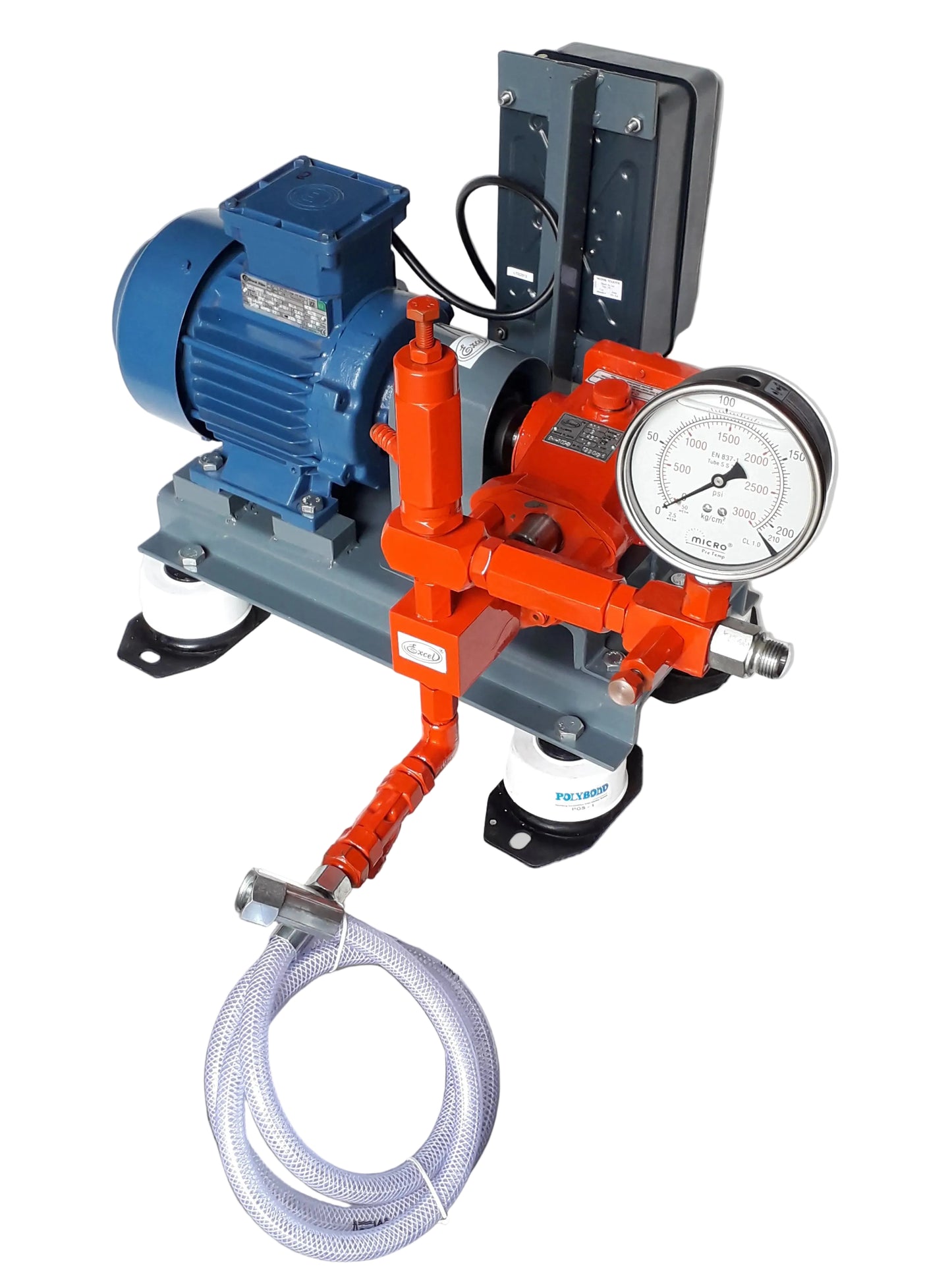

Hydro Testing Pumps - 100 Bar, Couple Drive with Starter

"EXCEL" Make Single Plunger Hydro-Test Pump mounted on a common base frame duly coupled with Electric Motor

Crank Shaft Mechanism, Supported with Ball Bearings, Pump Head from MS Material, SS Plunger, Suction and Discharge Valve with steel balls provided with Glycerin Filled Pressure Gauge.

Standard Accessories: SS-304 NRV, SS-304 PRV, Dampener, 4" Dial Glycerin Filled Pressure Gauge, Brass Body Pressure Release Body with SS Needle, Starter, Vibration Dampener and Strainer

Port Connection: 1/2" x1/2" BSP Threaded End

Test Pressure: 100 Bar, Flow: 3 LPM,1.5 HP/TEFC/3 Ph/Non FLP Electric Motor

Duty Cycle: Intermittent

Lead Time: 15 to 20 Business Days
