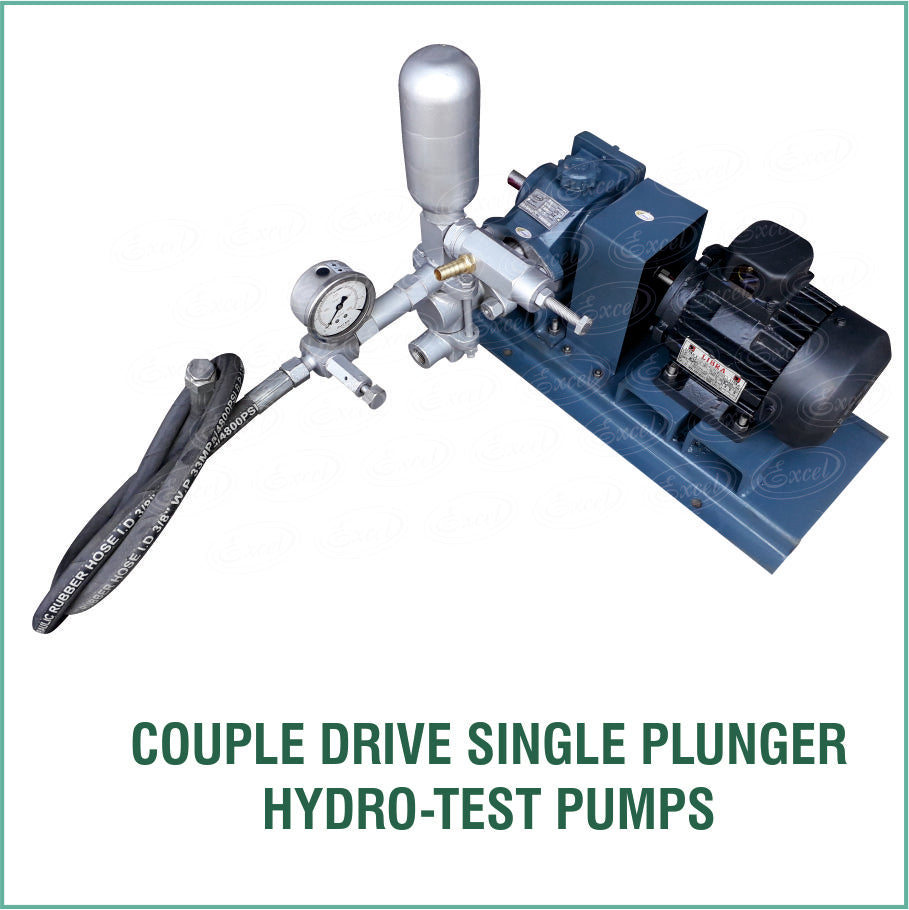

Motorized Hydro-Test Pump - Simplex - Couple Drive

Motorized Hydro-Test Pump - Simplex - Couple Drive

Regular price Rs. 36,950.00
Regular price Sale price Rs. 36,950.00
Sale Sold out

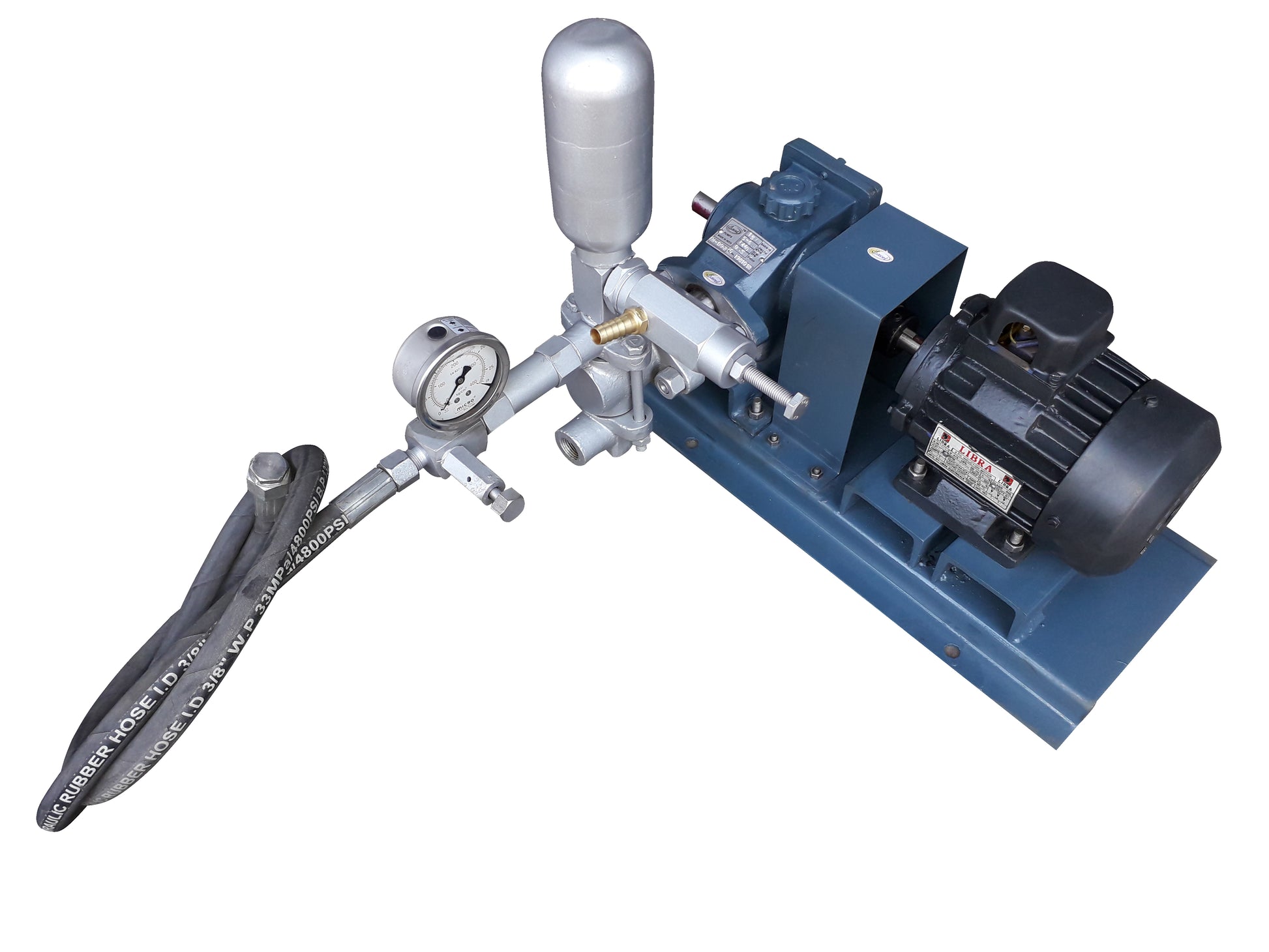

"EXCEL" Make Single Plunger Hydro-Test Pump mounted on a common base frame duly coupled with Electric Motor

Crank Shaft Mechanism, Supported with Ball Bearings, Pump Head Made from FG-260 , Material, SS Plunger, Spring Loaded Suction and Discharge Valve provided with Glycerin Filled Pressure Gauge, SS-304 NRV, SS-304 PRV, Brass Body Pressure Release Body with SS Needle

Port Connection: 1/2" x1/2" BSP Threaded End

Scope of Supply: Pump + PRV + NRV + Base + Pulley Set + NRV + Pressure Gauge +  Pressure Hose with Three Phase Electric Motor

Pressure: 200 Bar, Motor: 1.5 HP/TEFC/3Ph/Non FLP

Duty Cycle: Intermittent

Lead Time:  15 Business Days
